このキーボードの概要
| Brand | KBDFans®︎ |
| Price | high-class |
| JIS/US | HHKB, US, HHKB, WK, WKL |
| Keyboard Size | 60% |
| Key Profile | normal-profile |
| Key Sounds | |
| How to Connect | USB |
| Battery | usb-power |
| Hotswap | hotswap-available |
| Normal or Split | 非分割 |
Comment
- Offered by GroupBuy at KBDFans
- In addition to HHKB layout, WK/WKL layout is also selectable
- Keycaps and key switches are not included in this keyboard kit

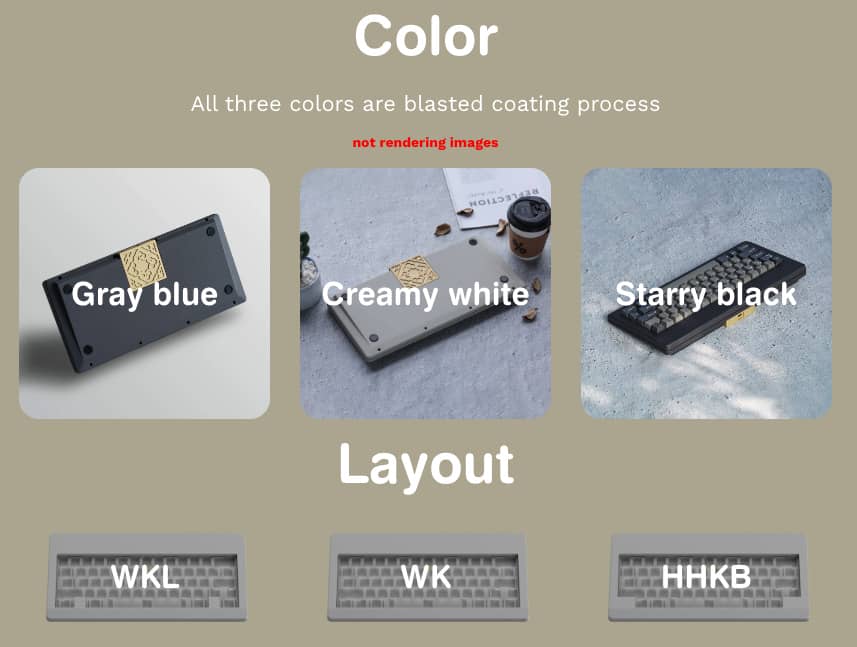

- Available in three colors: GrayBlue /Creamy White /Starry Black
Update
- January 11, 2023: WK layout kits begin shipping
仕様詳細
Specifications
| Structure: Top mount/Gasket mount |
| Prototype reference: G80-3077SAU, retro design |
| Programmable: QMK firmware/VIA supports |
| Plate: Polycarbonate |
| PCB: Flex cut, 1.2mm thickness, without Per-key RGB |
| Layout: WKL/WK/HHKB |
| Weight: Brass, surface sandblasted process |
| PCB: Hot-swap |
| Weight: around 1.70 kg (case+weight bar) |
Include
| Blasted coating aluminum case x1 |
| Flexible cutting and hot swap PCB x1 |
| Plate x2 (Polycarbonate and FR4) |
| Silicone socks set x1 |
| PCB foam x1 |
| Daughterboard x1 |
| Bottom case foam x1 |
| EVA Switch pads x1 |
| Rubber feet and screws |
| Stabilizers shims x1 |
| Cherry screw-in stabilizers |

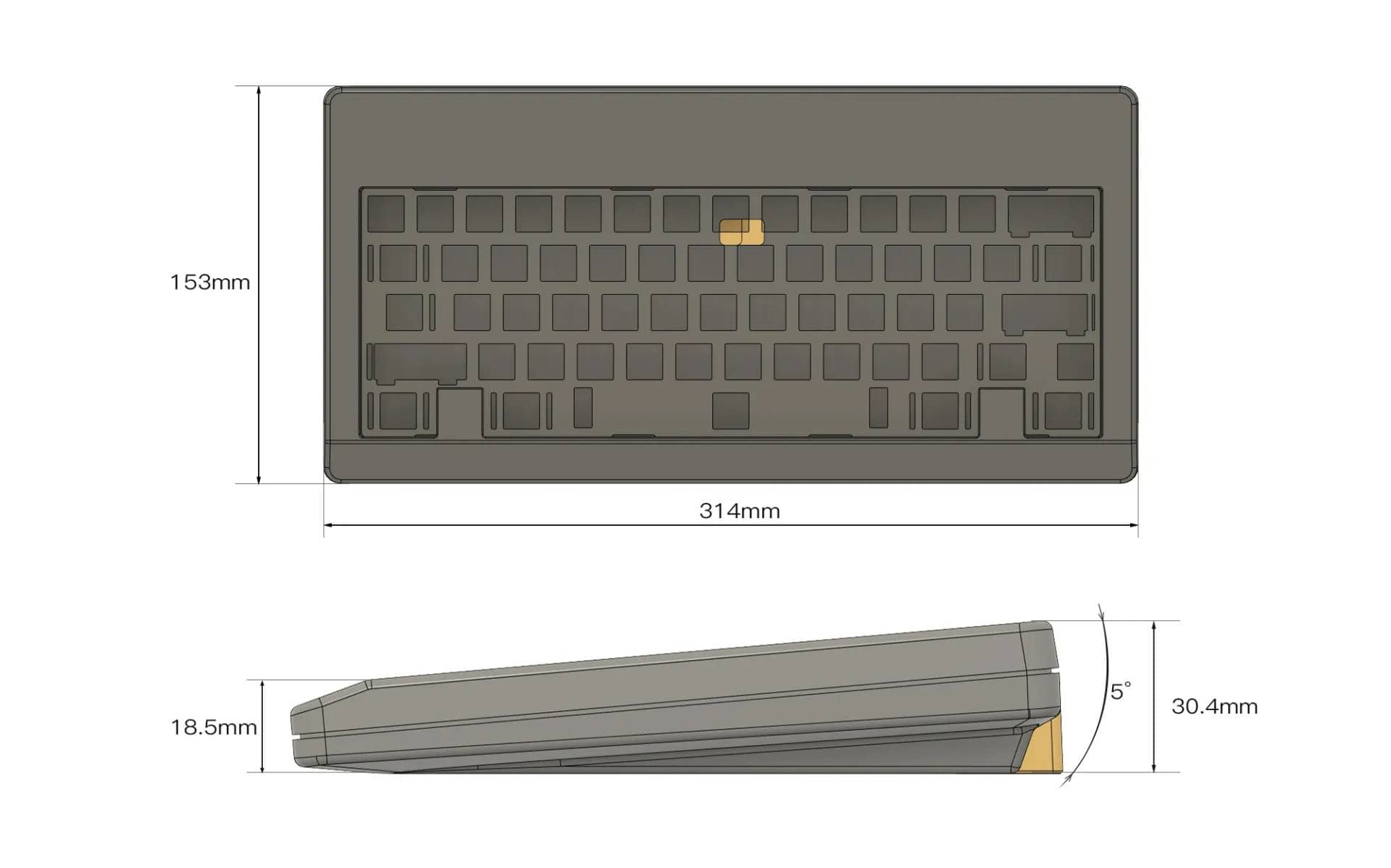

Dimentions
Information reference: https: //kbdfans.com/collections/og60/products/og60-retro-keyboard
